| view【PRODUCT - Outline】 | |
| view【Product - Features】 | |

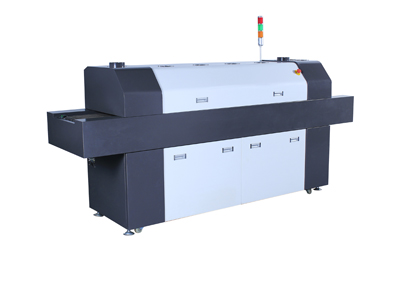

1, the patent issued Hotline heating technology, the independent small loop shipped wind design, the upper and lower heating methods, thermal compensatory, high thermal efficiency, energy saving, heating speed, particularly suitable for BGA and CSP components such as high-quality products welding 2, the U.S. of HELLO technology unique duct design, imports the volute shipped wind with three wind installments, Yun Feng uniform, high efficiency heat exchange 3 preheating zone, constant temperature and welding area, upper and lower heating independent circulation, individually controlled. Each temperature zone temperature control accuracy of ± 2 ° C. 4, the the adjacent temperature zone difference MAX up to 100 ℃, not string temperature, the temperature of each temperature zone and hot air wind speed independently adjustable, transport inverter control, humidity control accuracy up to ± 10mm/min BGA particularly suitable / CSP and 0201, such as welding 5, suitable for debugging various MODEL temperature curve, double welding or three welding zone, eight lines PROFILE TEST △ T from 8 ° C minimum connection curve test in particular the corresponding lead-free soldering process for Japanese or European standards 6, using imported high temperature motor direct drive hot air heating, thermal equilibrium, low noise, vibration small 0201 shift 7, the temperature was raised quickly to set the working temperature from room temperature to about 20 minutes. Has a fast and efficient thermal compensation, the difference between the set temperature and the actual temperature of the weld zone is less than 30 8, modular design, compact structure, maintenance of long-term convenience 9, two independent micro-circulation cooling zone, optional compulsory within the cycle refrigeration system and flux recovery system 10 industrial computer control, intelligent PLC temperature control system, offline functionality, high reliability system |
|
| view【Product - Technology Planning】 | |
| view【Product - process parameters】 | |
